What is s235j0wp steel plate?

S235J0WP is a hot rolled weathering steel grade belonging to the European standard. The Weathering steel S235J0WP plate shows improved corrosion resistance and can be used in structural projects. Deciphering the S235J0WP standard, S indicates it is a structural steels and 235 is min yield strength in MPa.

The JO designation states that the material has undergone impact testing at 0 degrees C. And finally, WP means weathering properties due to which a rust-like protective layer forms on the plate surface. The S235J0WP steel plate material has low carbon content and fine grain which improves its resistance to atmospheric corrosion.

Table of content

We are a BS EN10025 s235j0wp sheet supplier with years of experience in India.

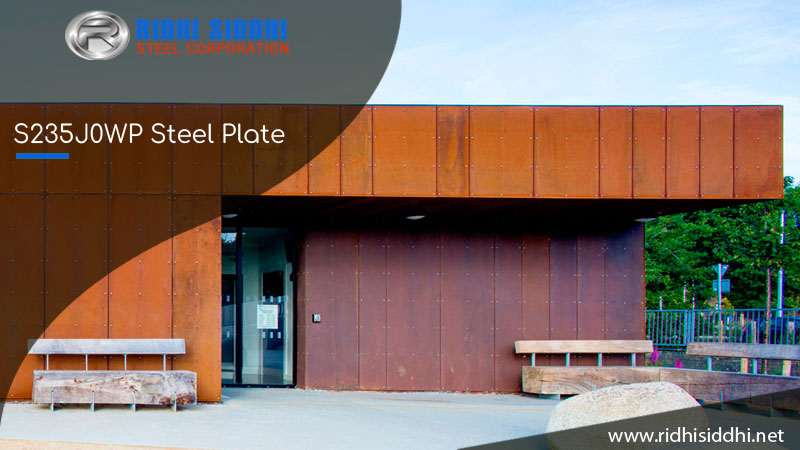

S235J0WP steel plate

Where can I use s235j0wp plate ?

The S235J0WP plate can be used for different welded, bolted and riveted structures. Due to their weathering and other mechanical properties, they can be used in fabrication and various architectural projects.
S235J0WP structural steel plate is also used for smokestacks, freight wagons, pylons, silos and bridges. You can also use the plates for making railway cars, marine containers and different outdoor furniture.

As a stockist, we offer corten steel s235j0wp plates in Mumbai that have been inspected and finished according to specifications.

S235J0WP plate

S235J0WP plate

S235J0WP steel sheet

S235J0WP steel sheet

Corten steel S235J0WP coils

Corten steel S235J0WP coils

Can you weld EN10025 s235j0wp steel plate ? which method use ?

EN10025 S235J0WP steel plate can be welded using standard techniques, but you should consider the material properties and following the right procedure. As S235J0WP is a low alloy steels, hence low hydrogen welding consumables can be ideally used for this. You can use basic coated electrodes and solid wire matching the strength and corrosion resistance level of EN10025-5 S235J0WP steel plate. However, it depends on specific welding conditions and thickness of the BSEN10025 S235J0WP steel plate.

We can rapidly deliver s235j0wp structural steel plate in Dubai in a range of thicknesses, including 5 to 200mm or bespoke, as the country’s oldest exporter

S235J0WP steel plate specification

S235J0WP steel plate specification



Thickness Width Length
5 to 200 mm 1500 to 3000 mm 3000 to 12000 mm
Standard Application Services
EN 10025, EN 10155 structural steel bridges cutting, welding
Request an estimate right away for superior and flexible Jindal and Uttam make EN10025-5 s235j0wp coil and strips for structural applications.
What are types of s235j0wp plate ?

EN10025 S235J0WP steel plate

EN10025 S235J0WP steel plate

  • Width: 1500 to 3200 mm
  • Thickness: 6 to 700 mm
  • Length: 3000 to 12000 mm

S235J0WP structural steel plate

S235J0WP structural steel plate

  • Coated
  • Hot rolled
  • Galvanized

Weathering steel S235J0WP strips

Weathering steel S235J0WP strips

  • Welding
  • Cutting
  • Bending
Having trouble locating a reliable stockholder of s235j0wp steel sheet who can deliver right away? You are in the right location; also, look at its properties.
Corten steel s235j0wp plate chemical properties
S235J0WP C Si Mn P S Cu Cr Ni
max 0.13 max 0.40 0.20-0.60 max 0.035 max 0.035 0.25-0.55 0.40-0.80 max 0.85
S235j0wp steel sheet mechanical properties
S235J0WP Yield strength Tensile strength Elongation
more than 225MPa 340-510MPa 24%.

S235J0WP VS S355J0WP

The S235J0WP material has min yield strength of 235 MPa, whereas it is 355 MPa for S355J0WP.
S355J0WP has higher strength which makes it more suitable for different structural applications with higher loading capacities than S235J0WP.
Impact testing helps to determine the amount of absorbed energy by a material during fracture. S235J0WP can undergo impact testing at 0 degrees C, whereas for S355J0WP impact testing takes place at -20 degrees C.

What is the thickness of s235j0wp sheet? How are calculations made?

The thickness of S235J0WP steel sheets can depend on structural design, load-bearing capacity and industry standards. You can also customize the thickness within range as per your specific application requirements. To determine the appropriate S235J0WP sheet thickness, you need to perform engineering calculations.

This will vary with your project requirements and include factors like anticipated loads, environmental conditions and safety. Bending, shear and buckling are also important factors that should be considered. You can adhere to the industry codes & standards to provide guidelines for calculating thickness based on the given design criteria.

How much the cost of corten steel s235j0wp plate ?

The Corten steel S235J0WP plate cost can vary with the suppliers. The pricing is actually dependent on factors like internal costs, market conditions, quantity ordered, customization involved and delivery locations. You should research and list down a few suppliers who offer high quality S235J0WP corten plates.

Compare their prices to get the most competitive offer. You can contact Ridhi Siddhi Steel Corporation to discuss your requirements and they will give you some exclusive deals.
